drylin® N - Low profile linear guide system NK-22-17-40

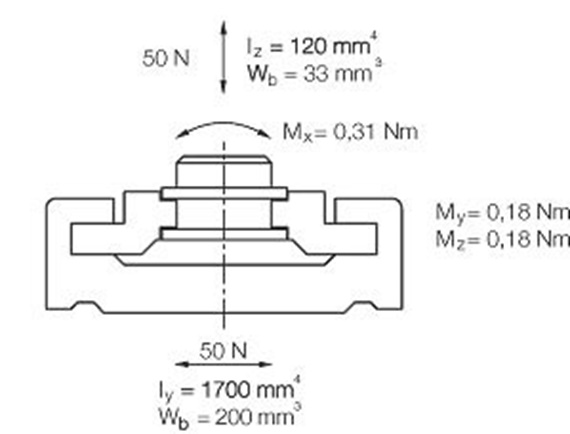

DryLin® N low profile guide system rail

Order no.	Max. rail lengths	a	C4	A3	C5=C6		h	h1	K1*	ly	lz	Weight of rail	Price / m
	[L max.]				Min.	max.				[mm²]	[mm²]	[g/m]
NS-01-17	2000	17	60	0	20	20/49,5	5,5	0,9	M3	1700	120	150	25,45 EUR
NS-01-17-AR	2000	17	60	0	20	20/49,5	5,5	0,9	M3	1700	120	150	29,27 EUR
NS-01-17-UNGEBOHRT	2000	17	60	0	20		5,5	0,9	M3	1700	120	150	22,78 EUR

Mai multe informatii despre piesa selectata:

Auto CAD 3D

Comanda de mostra

PDF

Quote request

myCatalog

For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head

Drylin® low profile linear guide system NK-02-17

Order no.	Designation	Weight of carriage
		[g]
NW-22-17-40	Double carriage with threaded pin	2,6	6,36 EUR
NW-22-17-40-LLY	Double carriage with threaded pin floating bearing y-direction	2,6	6,36 EUR
NW-22-17-40-LLYZ	Double carriage with threaded pin floating bearing y und z-direction	2,6	6,36 EUR
NW-22-17-40-LLZ	Double carriage with threaded pin floating bearing z-direction	2,6	6,36 EUR

Mai multe informatii despre piesa selectata:

Auto CAD 3D

Comanda de mostra

PDF

Quote request

myCatalog

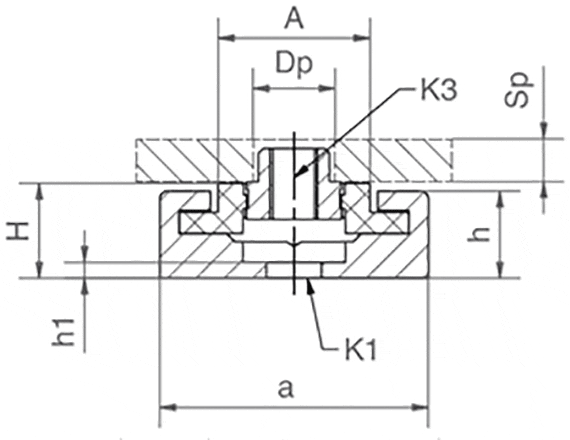

Dimensions [mm] - guide carriages

Part. No.	H	A	C	C1	C2	A2	H2	K4	Sp min.	Dp Ø min.	Weight
	±0,35										[g/m]
NW-22-17-40	6	9,6	40	40	28	0	0	M3	2,5	5	2,6
NW-22-17-40-LLY	6	9,6	40	40	28	0	0	M3	2,5	5	2,6
NW-22-17-40-LLYZ	6	9,6	40	40	28	0	0	M3	2,5	5	2,6
NW-22-17-40-LLZ	6	9,6	40	40	28	0	0	M3	2,5	5	2,6

Mai multe informatii despre piesa selectata:

Auto CAD 3D

Comanda de mostra

PDF

Quote request

myCatalog

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriage
3. Entry of the rail length in mm
4. Selection of the carriage options
5. Selection of the rails options.

Hint:

Detailed information can be found below in the drawings as well as in the below-mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.

no floating bearing

Floating bearing in z-direction

Floating bearing in y-direction

Floating bearing in yz-direction
