drylin® R shaft guides

Components within the drylin® R shaft guides are identically dimensioned as recirculating ball bearings - in contrast, the drylin® R systems minimise noise emissions and reduce surface pressure by the larger contact area between guide and shaft. This allows the use of soft shaft materials such as aluminium or carbon fibre. All in all, the largest range of shafts is available in the programme of shaft linear guides with seven different materials. In combination with three different bearing types made of solid plastic, aluminium or stainless steel as well as five linear liners for different environments, drylin® R is suitable for maximum flexibility and all applications. The unique geometry of the bearing liners ensures a firm hold in the housing by means of a positive locking. This is contrary to glued or pressed solutions even under extreme conditions such as temperature, pressure, impacts and water. As required, a quick replacement of the individual linear liner is also possible.


Produse

Număr de produse: 65

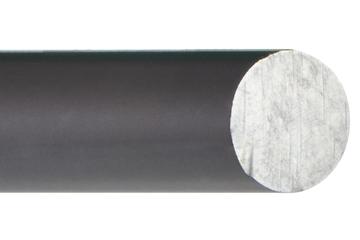

drylin® R - aluminium shaft, solid/hollow shaft, AWMP
  • Lightweight
  • Ideal in combination with liners made from iglidur® J/J200
  • Low wear of plain bearings
  • Corrosion-free
  • Aluminium EN AW 6060/6061 (ALU)

Începând cu 28,99 USD/m

La pagina produsului
drylin® R - liner JUM-01
  • Material: iglidur® J for all shaft surfaces in indoor and outdoor use
  • Version: enclosed housing, long design

Începând cu 3,94 USD/Pc.

La pagina produsului
drylin® R - aluminium shaft, supported, AWMU, EN AW 6061/6060
  • Lightweight
  • Ideal in combination with liners made from iglidur® J/J200
  • Low wear of plain bearings
  • Corrosion-free
  • Aluminium EN AW 6060/6061 (ALU)

Începând cu 72,85 USD/m

La pagina produsului
drylin® R - liner JUM-02
  • Material: iglidur® J for all shaft surfaces in indoor and outdoor use
  • Version: Enclosed, short design

Începând cu 3,30 USD/Pc.

La pagina produsului
drylin® R - linear slide bearing RJ4JP-01
  • Alternative to ball bearings with Japanese dimension
  • Quick assembly
  • Secured by circlips
  • Plain bearing material: iglidur® J4

Începând cu 2,28 USD/Pc.


Timp de livrare la cerere
La pagina produsului
drylin® R - stainless steel shaft, EEWM, 1.4034
  • High corrosion resistance
  • High chemical resistance
  • Ideal solution for wet applications
  • Stainless steel EEWM 1.4034 (X46)
drylin® R - linear slide bearing RJUM-01
  • Secured by circlips
  • Enclosed anodised aluminium adapter
  • Material of the liner: iglidur® J

Începând cu 9,61 USD/Pc.

La pagina produsului
drylin® R - liner J200UM-01
  • Material: iglidur® J200
  • Version: Enclosed housing, long design

Începând cu 4,73 USD/Pc.


Timp de livrare la cerere
La pagina produsului
drylin® R - steel shaft, SWM, 1.1213
  • Cost-effective standard
  • High load capacity
  • Dry area applications
  • Low coefficient of friction against plastic bearings
  • 1.1213 (Cf53) steel
drylin® R - liner E7UMO-01
  • Material: iglidur® E7
  • Version: long, open design

La cerere


Timp de livrare la cerere
La pagina produsului
drylin® R - linear slide bearing OJUM-01
  • Open anodised aluminium adapter
  • For supported shafts
  • Material of the liner: iglidur® J

Începând cu 12,56 USD/Pc.

La pagina produsului
drylin® R - liner XUM-01
  • Material: iglidur® X
  • Version: Enclosed, long design, high temperature
  • Resistant to temperature and chemicals on stainless steel and chromed shafts

Începând cu 8,51 USD/Pc.

La pagina produsului
drylin® R - linear slide bearing TJUM-01
  • Split anodised aluminium adapter
  • Quick replacement of bearing liner without dismantling the shaft
  • Material sliding element: iglidur® J

Începând cu 25,94 USD/Pc.

La pagina produsului
drylin® R - quad block RQA-01
  • Material sliding element: iglidur® J
  • Design: closed design

Începând cu 63,32 USD/Pc.

La pagina produsului
