drylin® linear guides

Gliding instead of rolling – low noise, clean and lubrication-free
The product range of lubrication-free drylin® linear guides is based on the principle of "gliding instead of rolling". In combination with corrosion-free materials, tribo-optimised iglidur® high performance polymers are used as a sliding surface. drylin® linear guides traverse in dry operation and are thereby maintenance-free and are insensitive to influences such as dirt, water, chemicals, heat or impacts. In addition, they have a very low noise because of the materials used and the special design. With these properties, drylin® linear guides can be used in a wide variety of environments, including extreme ones. The modular system allows for high flexibility with different rail guides and pillow blocks.

Produse

Număr de produse: 101

drylin® W - double rail WS
  • Design: Double Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Round

Începând cu 44,42 USD/m

La pagina produsului

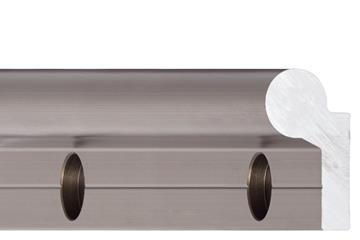

drylin® W- single rail WS
  • Design: Single Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Round

Începând cu 45,82 USD/m

La pagina produsului
drylin® W- complete slide system WW
  • Design: round
  • Material sliding element: iglidur® J200
  • Material: Die-cast zinc

Începând cu 37,94 USD/Pc.

La pagina produsului
drylin® W- single rail WS-ES
  • Design: Single Rail
  • Material: stainless steel 1.4571
  • Rail profile: Round
drylin® W- pillow block WJ200UM-01
  • Material: Die-cast zinc
  • Material sliding element: iglidur® J200

Începând cu 5,25 USD/Pc.

La pagina produsului
drylin® W- complete slide system WW-HKA
  • Design: round
  • Material sliding element: iglidur® J
  • Material: Die-cast zinc

Începând cu 69,90 USD/Pc.

Available on request
La pagina produsului
drylin® W - double rail WSX
  • Design: Double rail high profile
  • Material: Aluminum, hard anodized
  • Rail profile: Round

Începând cu 72,61 USD/m

Available on request
La pagina produsului
drylin® W- complete slide system WWC
  • Design: square
  • Material sliding element: iglidur® J
  • Material: Aluminium

Începând cu 51,94 USD/Pc.

Available on request
La pagina produsului

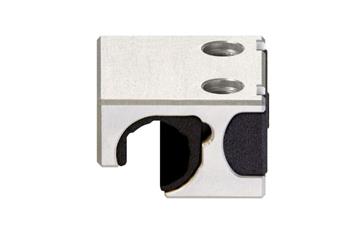

drylin® W- pillow block WJ200UMA-01-AL
  • Fast bearing change without disassembly
  • Smart maintenance directly on the rail
  • For single, double and high profile rails round ø 10 mm
  • Material: Aluminium
  • Material sliding element: iglidur® J200

Începând cu 24,59 USD/Pc.

Available on request
La pagina produsului
drylin® W - double rail, WSPC
  • Design: Double rail high profile
  • Material: Carbon
  • Rail profile: Square

La cerere

Available on request
La pagina produsului
drylin® W- complete slide system WW-SL-HKA
  • Design: round
  • Material sliding element: iglidur® J
  • Camera carriage 3/8" threaded hole
  • Material: Die-cast zinc

Începând cu 119,67 USD/Pc.

Available on request
La pagina produsului

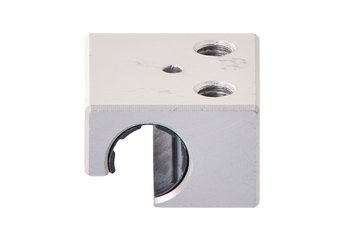

drylin® W- pillow block WJ200UM-01-AL
  • Material: Aluminium
  • Material sliding element: iglidur® J200

Începând cu 12,94 USD/Pc.

Available on request
La pagina produsului
drylin® W- single rail WSQ
  • Design: Single Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Square

Începând cu 33,95 USD/m

La pagina produsului
drylin® W - double rail WS-SL
  • Design: Double Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Round
  • For camera slider (3/8" thread)

Începând cu 100,64 USD/Pc.

Available on request
La pagina produsului
drylin® W - double rail, WSXQ
  • Design: Double rail high profile
  • Material: Aluminum, hard anodized
  • Rail profile: Square

Începând cu 66,24 USD/m

Available on request
La pagina produsului
