drylin® Q square linear guides

The drylin® Q square guides ensure a linear, torque-resistant movement and are ideally suited for the unsupported application. Thanks to the hollow profile, feed-through of cables is possible. The user can choose between three installation sizes or three profile sizes and benefits from the five longitudinal grooves on the carriage for flexible attachment of components. A manual clamp is available as an option for the square guides. The drylin® Q carriages can also be used on identically dimensioned, standard machine construction profiles.


Produse

Număr de produse: 14

drylin® Q square profile
  • Aluminium, hard-anodised, suitable for unsupported applications, robust, corrosion-resistant, light
  • Material: Aluminum, hard anodized
drylin® Q adjustable linear carriage
  • adjustable bearing clearance
  • Material sliding element iglidur® J
  • Material sliding element: iglidur® J

La cerere

Available on request
La pagina produsului
drylin® Q adjustable linear carriage, manual clamping
  • Adjustable bearing clearance with manual clamp
  • Material sliding element iglidur® J
  • Material sliding element: iglidur® J

La cerere

Available on request
La pagina produsului
drylin® Q linear plain bearing
  • Apply moments up to 3 Nm
  • Torque-resistant sliding elements made from iglidur® J
  • Material: iglidur® J

La cerere

Available on request
La pagina produsului
drylin® Q shaft end support
  • Supports made from plastic
  • Material: plastics

La cerere

Available on request
La pagina produsului

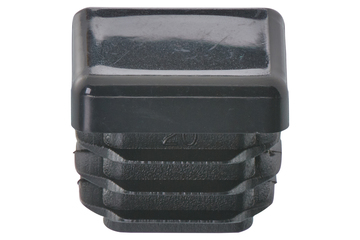

drylin® Q end cap
  • Endcaps for square section rails
  • Material: plastics

La cerere

Available on request
La pagina produsului
drylin® Q pillow block
  • Enclosed anodised aluminium housing
  • Maximum moments up to 5 Nm
  • Torque-resistant sliding elements made from iglidur® J
  • Material sliding element: iglidur® J

La cerere

Available on request
La pagina produsului
drylin® Q pillow block, tandem
  • Enclosed anodised aluminium housing
  • Maximum moments up to 10 Nm
  • Torque-resistant sliding elements made from iglidur® J
  • Material sliding element: iglidur® J

La cerere

Available on request
La pagina produsului
drylin® Q linear plain bearing with round flange
  • Enclosed anodised aluminium housing
  • Maximum moments up to 5 Nm
  • Torque-resistant sliding elements made from iglidur® J
  • Material sliding element: iglidur® J

La cerere

Available on request
La pagina produsului
drylin® Q linear plain bearing with angular flange
  • Enclosed anodised aluminium housing
  • Maximum moments up to 5 Nm
  • Torque-resistant sliding elements made from iglidur® J
  • Material sliding element: iglidur® J

La cerere

Available on request
La pagina produsului
drylin® Q linear plain bearing with round flange, tandem
  • Enclosed anodised aluminium housing
  • Maximum moments up to 10 Nm
  • Torque-resistant sliding elements made from iglidur® J
  • Material sliding element: iglidur® J

La cerere

Available on request
La pagina produsului
drylin® Q linear plain bearing with angular flange, tandem
  • Enclosed anodised aluminium housing
  • Maximum moments up to 3 Nm (size 10) and up to 10 Nm (size 20)
  • Torque-resistant sliding elements made from iglidur® J
  • Material sliding element: iglidur® J

La cerere

Available on request
La pagina produsului
