Linear carriage drylin® T

Dimensionally identical to standard commercial linear carriages with recirculating ball bearing guides

Performance

drylin® T linear carriage with automatic clearance adjustment

50% longer service life through iglidur J200 slider
Robust captive bearing system
Adjustable bearing clearance

Buy performance linear carriage

Standard linear carriage

Preset bearing clearance

Manual bearing alignment

With manual clamp (optional)

Buy standard linear carriage

With automatic clearance adjustment

drylin® T guide carriage with automatic adjustment of the bearing clearance

Automatic clearance adjustment

Different installation sizes

Easy installation

Buy linear carriage with automation

Why choose drylin® T rail guides?

One-to-one replacement easily

Connector and hole dimensions identical to conventional recirculating ball bearing systems

Precise carriage guidance

from 0.02 - 0.15 mm
optional clearance adjustment:
Automatic adjustment
Manual adjustment

Lubrication and maintenance-free

The fact that no lubrication is necessary means less maintenance and lower costs for you.

drylin® T clamps for linear rail guidance

Manual clamps for an easy positioning with plastic clamp element or with brass bottom clamps for different installation sizes of the drylin® T Series.

Compact or heavy-duty design
Available for sizes 15mm-30mm
Holding force up to 500N

Buy drylin® T clamp element

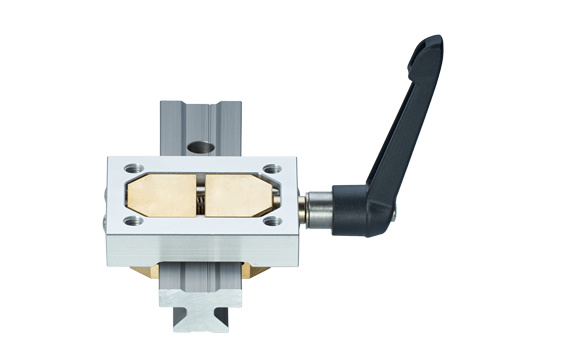

drylin® T clamp element and manual clamp for linear rail guide

drylin® T miniature guide for small installation spaces

Linear rails with a compact design in 4 installation sizes

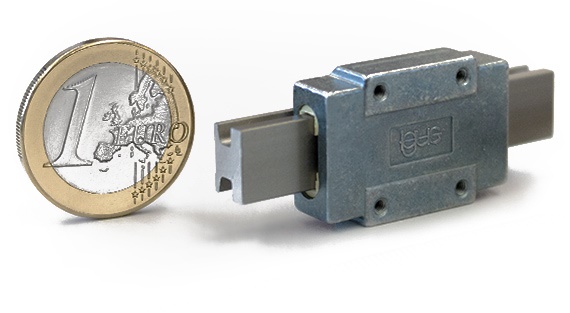

The dimensions of the miniature linear rails from the drylin® T product range are identical to most commercially available miniature recirculating ball bearing systems. The compact design makes the system of miniature guides especially suitable for small installation spaces. The simple and effective rail guide is tough and cost-effective.
With the TWE-04, igus® provides a guide carriage with adjustable bearing clearance for miniature guides.

drylin® T low-profile guide rail

The alternative rail guide

Identical connector and hole dimensions.

INA: KUVE -B • KWVE-B • KWE-B • KWSE / KUSE
Bosch Rexroth: FNS • FLS • SNS • SLSS • NH • SLH • FNN • SNN
THK: SHS-C/LC • HSR-A/LA • HSR-B/LB/BM
Hiwin: HGW-CC • QHW-CC • RGW-CC • RGW-HC
Rollon: MRS • MRS-L
IKO: MRS • MRS-L
Rodriguez: BRH-A • BRH-AL • MSR-E • MSR-LE
Romani: HRC-FN

To the drylin® T shop

Selected application examples

The drylin® T rail guides are identical in terms of design and dimensions with a large number of recirculating ball bearing systems. This makes a one-to-one replacement very easy. The robust rail guide additionally guarantees a long service life of up to 50,000km.

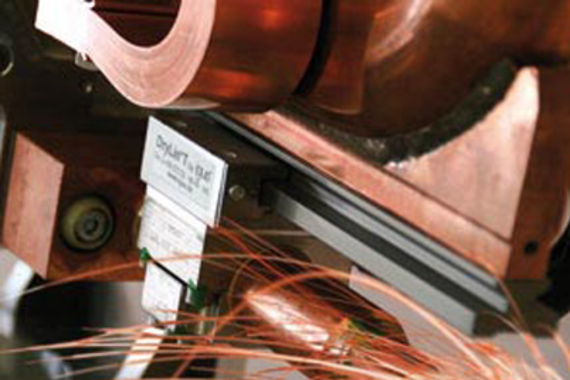

drylin® T linear rail in welding rod for automotive industry

drylin® T in welding technology

Long service life and low costs

The drylin® TK-01-15 linear guide is not only dirt resistant. It is also extremely robust and guarantees a long service life even under extreme environmental conditions.

drylin® T linear rail in welding tongs in the automotive industry

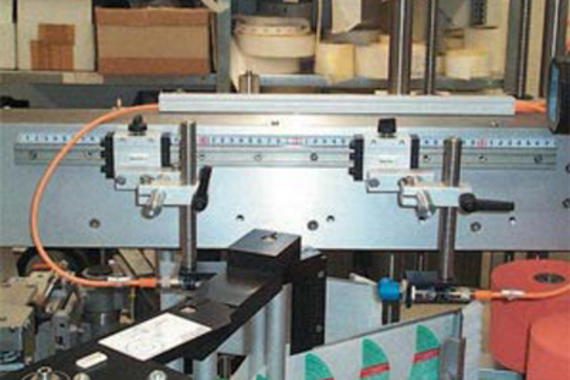

drylin® T rail guide in label feed system for packaging machine

drylin® T in label feeding system

GESET ETIKETTIER-SYSTEME GmbH relies on drylin® T

Rapid and flexible format adjustment, absolutely lubrication free and competitively priced – drylin® T linear guide system is the solution for such exacting standards. One further benefit is that the guide carriage is also available with a manual clamp.

drylin® T rail guide in label feed

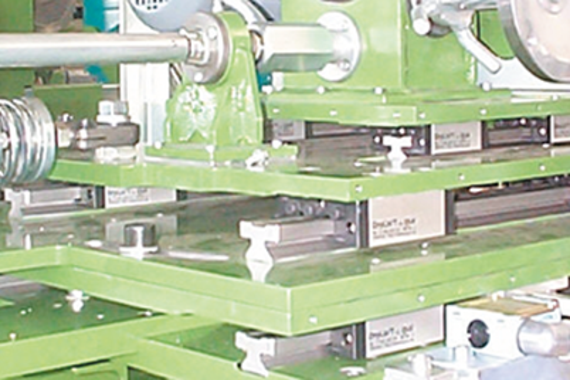

drylin® T in a grinding machine

Adjustments in linear movements in cupboards, doors and more

The pressing roller in a grinding machine and the imbalance of the grinding tools are guided over a drylin® T rail in this machine from SMB MASCHINENBAU GmbH. The vibration-dampening properties of the plastic bearings provide support for the elaborate grinding process.

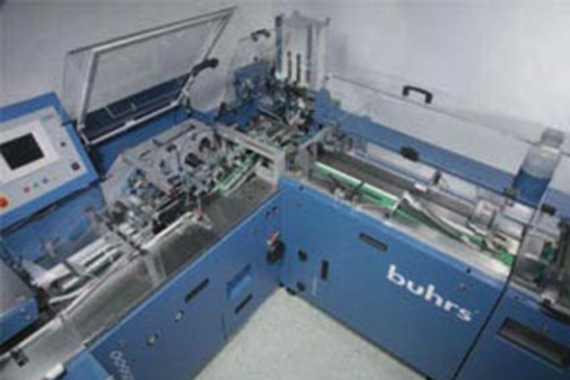

drylin® T in an enveloping machine

4 double strokes per second – with little clearance and maintenance-free

drylin® T rail guides are used in this enveloping machine to guide an envelope suction opener that is mounted on one side. In this application, a variable stroke of 4mm to 10mm and a cycle output of 4 double strokes per second takes place. The guidance must be clearance and maintenance-free and may not require lubrication.

drylin® T rail guide in an enveloping machine

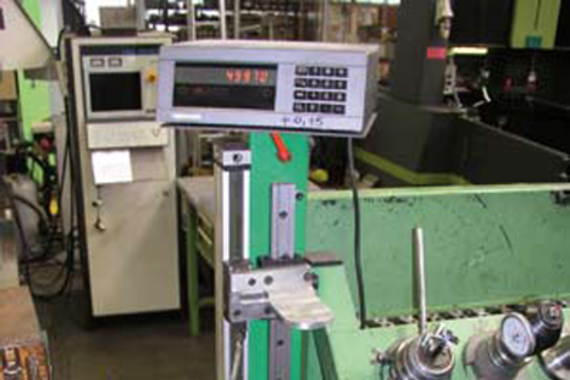

drylin® T rail with measuring system for tools

Measuring system saves a lot of time and money

Tool changing time is reduced considerably by the measuring system from the drylin® T product range. The drilling and cutting tools in CNC processing machines are measured prior to processing and the values are entered in the computer. This means that every tool needs to be measured only once. The gauge is guided on a drylin® T rail.
