Now also for drylin profile guides: predictive maintenance information and connection to the Internet of Things (IoT)

smart drylin W

Intelligent condition monitoring and integration into customer networks with i.Cee:plus II & drylin W

A measurement and data transmission unit is built into the carrier plate of the drylin carriage to implement a wide range of Industry 4.0 use cases. This communicates with the intelligent i.Cee:plus module via the industry-standard LoRa radio. In this way, any diverse integration into customer networks or further IoT concepts can take place. Of course, this can also be implemented locally using a standard CAT5 patch cable.

The 24V DC power supply of the integrated measuring unit is ensured by a LiPo battery, which can be easily charged via USB interface. This ensures round-the-clock condition monitoring of the profile guide. By connecting to the i.Cee:plus module, further features such as predicted maintenance intervals, live dashboards (online and offline) or immediate alarm messages via e-mail or SMS can be implemented.

Part number: WW-10-40-10-IS.LORA

Join now and become a beta tester

Improve technology

Tech up

Measuring and LoRa data transmission unit integrated in the carrier plate of the drylin® carriage
LoRa radio range: approx. 50m
Integrated 24V DC power supply with LiPo accumulator
Information output on current sensor status, time until next predicted maintenance and battery status
Connection to customer networks and Industry 4.0 applications

Cost down

Cost down

Use without special accessories thanks to charging via standard USB socket
Space-saving receiver and computing unit for external installation

Proof

Proof

Function test in measuring system successfully passed
Try it out yourself in your own application: igus® is offering free samples in the beta test phase

Sustainability

Sustainability

Predictable service intervals save resource-intensive emergency operations

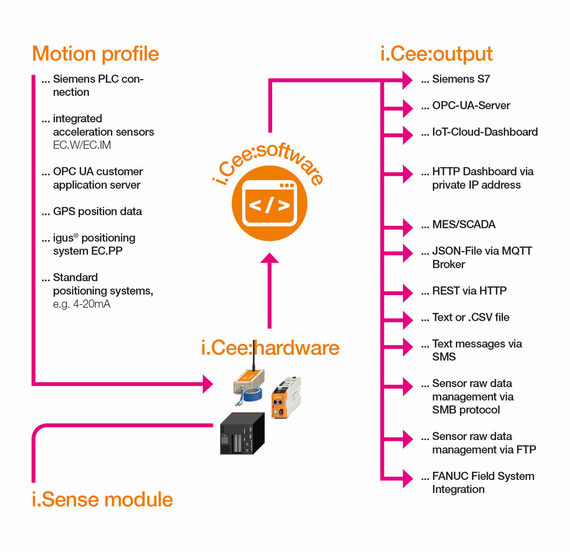

i.Cee:plus

What does predictive maintenance mean?

i.Cee ("I see ahead")

Smart networking of individual components creates the solid foundation for predictive maintenance concepts. At igus®, we call our predictive maintenance system "i.Cee.

The central element of this system is the i.Cee software. Sensors on the energy chain, the plain bearing bush, or a linear carriage, transform products deliverable from stock into smart products. This upgrade creates the capability of determining your igus® product's maximum service life, and the i.Cee system also tells you the perfect time for servicing it. Algorithms adapt the service life and the service time to the equipment's use. The software we provide and a few sensors transform standard products available from stock into smart energy supply or bearing technology in no time.

Learn all about predictive maintenance here

Presentation of new products by Richard Habering

Flexible solutions and great variety

The drylin® W profile rail guide

14 rail profiles, 50 carriage versions
100% maintenance-free and lubrication-free
Corrosion-resistant and hygienic
Wear-resistant
Resistant to dirt, dust and humidity
Very quiet operation
Costs up to 40% less than recirculating ball bearing guides

All about drylin® W

Longer product life cycle

Sustainability

drylin® linear technology does not use a single drop of lubricating oil . In addition, our tribologically optimised materials produce less microabrasion than commercially available plastics. Longer service life also has a positive net effect on the environment.

No lubricants required

Industry 4.0: real-world examples

Customer applications with smart plastics

smart at guedel

Linear robots

Due to the integration of smart plastics sensors into the energy supply, the customer's condition monitoring system is supplied with data.

Güdel Deutschland GmbH

To the application report

smart at AOS

Aluminium oxide production

"If movement of the chain is excessively hindered by dust or dirt, the push/pull monitoring shuts down the system before any damage can occur."

Aluminium Oxid Stade GmbH (AOS)

To the application report

Smart applications

More smart applications

Find further successful application examples of our smart plastics customers.

Exemple de aplicații cu materiale plastice inteligente

Smart project planning

Project planning

Get to know expert support and customised solutions for specific applications.

Smart consulting tool

smart tool

With just a little information about your application, you can make the right choice of smart plastics.

Smart brochure

smart brochure

This brochure provides a quick overview of all igus activities relating to Industry 4.0 and the Internet of Things.
