Ready-to-install drylin® SLW-XY tables

Fast delivery, cost-effective and customised

With linear modules, precise adjustment of a position on a work surface can be carried out. With the drylin® SLW-XY tables, this now becomes easier. igus has developed ready-to-install XY tables suitable for your desired work surface.

Only 1 unit for two adjusting directions
For a work surface of up to 500mm x 500mm
Same stroke lengths or individual configuration
Accessories will be delivered at the same time

The SLW-XY tables are available in 4 sizes Components from the drylin® W linear system are used as linear guide.

Tech up

Torsionally stable adjustment in two directions
Option of same stroke length or individual lengths, self-locking due to trapezoidal thread
Fast, smooth operation with dryspin® high helix thread
Clearance adjustment and pretension (optional)

Cost down

Reduced construction effort thanks to ready-to-install delivery of a single linear module for both settings
Linear guide from the drylin® W linear system
Easy configuration involving lead screw clamping, position indicator and hand wheel

Proof

Area ratio (installation height/work surface) always ≤ 2
Tested for work surfaces up to 500mm x 500mm: TR14x4 trapezoidal thread (SLW-XY-1660), dynamic axial load 500N, stroke length 200mm, feed rate 0.4m/min, speed 100rpm, minimum service life 62,863 double strokes

Sustainability

Positioning in two directions with one module instead of two
Lubrication-free, clean, maintenance-free
Learn more about the topic of igus sustainability at: Plastic2Oil

Lubrication-free

Quiet operation

Corrosion-free

Format adjustment

Temperature-resistant up to +150°C

Cost-effective

Technical data and dimensions [mm]

Part No.	Max. stroke length [mm]	A -0.3 [mm]	H [mm]	E1 ±0.15 [mm]	E2 ±0.15 [mm]	Base length lx [mm]	Base length ly [mm]	f [mm]	lt [mm]	tk ±0.1 [mm]	ts [mm]	tg	kt [mm]
SLW-XY-0630	150	54	38	40	45	94	94	1,5	20	9	7	-	6
SLW-XY-0660	300	85	38	71	76	125	125	1,5	20	11	6,6	-	8
SLW-XY-1040	300	74	48	60	60	117	117	1,5	22	11	6,8	M8	6,4
SLW-XY-1040-PL ⁽¹⁾	300	74	48	60	60	117	117	1,5	22	11	6,8	M8	6,4
SLW-XY-1080	300	108	48	94	94	151	151	1,5	22	11	6,8	M8	6,4
SLW-XY-1080-PL ⁽¹⁾	300	108	48	94	94	151	151	1,5	22	11	6,8	M8	6,4
SLW-XY-1660	400	104	72,5	84	86	154	154	1,5	25	15	9	-	8,6
SLW-XY-2080	500	134	82	116	116	190	190	1,5	28	15	8,6	-	8,6

Mai multe informatii despre piesa selectata:

Auto CAD 3D

Comanda de mostra

PDF

Quote request

myCatalog

(1) Preload

Part No.	sg	d [mm]	T	l1 [mm]	d1 standard	d1 alternative	l2 [mm]	d2 standard	d2 alternative	ha1 [mm]	ha2 [mm]	W ha2-ha1 [mm]
SLW-XY-0630	M4	5	M8	15	M8	M8	15	M8		9,5	28,5	18,4	La cerere
SLW-XY-0660	M4	5		15		Tr08x1.5	15		-	9,5	28,5	19	La cerere
SLW-XY-1040	M6	10		17	TR10x2	Tr10x2	17		6h9	14,5	33,5	19	La cerere
SLW-XY-1040-PL ⁽¹⁾	M6	10		17	TR10x2	Tr10x2	17		6h9	14,5	33,5	19	La cerere
SLW-XY-1080	M6	10		17	TR10x2	Tr10x2	17		6h9	14,5	33,5	19	La cerere
SLW-XY-1080-PL ⁽¹⁾	M6	10		17	TR10x2	Tr10x2	17		6h9	14,5	33,5	19	La cerere
SLW-XY-1660	M8	16	M8	20	TR14x4	8h9	20	8h9	8h9	18,5	54	35,5	La cerere
SLW-XY-2080	M8	20	M8	26	12h9		26	12h9		23	59	36	La cerere

Mai multe informatii despre piesa selectata:

Auto CAD 3D

Comanda de mostra

PDF

Quote request

myCatalog

(1) Preload

Test the advantages of the SLW linear module system

A free sample on your desk

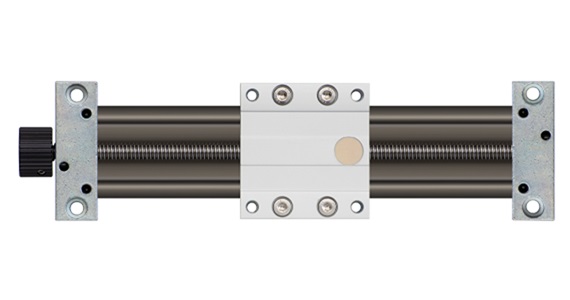

igus SLW linear units with lead screw drive are based on the drylin W linear modular system as well as on maintenance-free and self-lubricating dry-tech high-performance polymers. The lubrication is incorporated into the bearing material, rendering the linear axes and linear module suitable for dry-operating conditions, i.e. they are maintenance-free for their entire service life. See for yourself, ask for a free sample from us.
