Reibungslose Bewegung im Sensorprüfstand

Hoffmann + Krippner

Initially, this was done manually and with the naked eye. However, as the number of products grew, the time and labour required increased, as did the demands on quality inspection. The company therefore developed a test cell in which the test processes are automated. A SCARA robot is used to move the sensors from electrical to optical testing. Another robot removes the parts from the line every ten seconds and sorts them into the groups "faultless" and "faulty". Hoffmann + Krippner have set up two such inspection lines, each of which inspects one million sensors per year.

A suitable driven linear axis including control system was required for the feed to the visual inspection station. The axis had to be durable and maintenance-free, and the control system had to be intuitive.

A pneumatic solution, which was initially considered, was rejected for cost reasons.

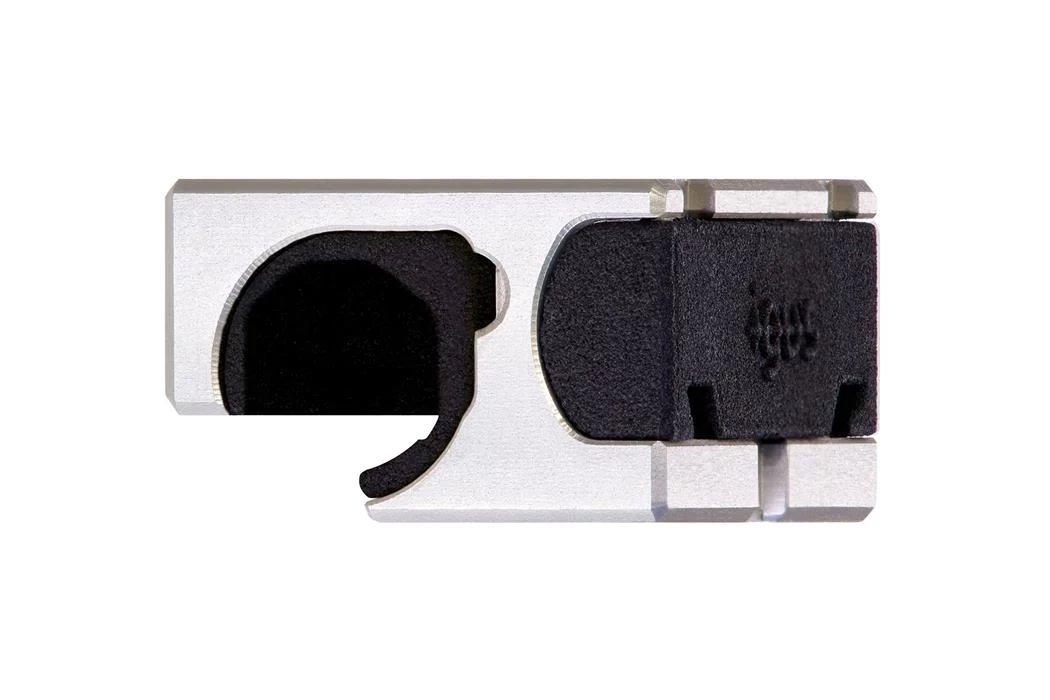

Our toothed belt axes of the drylin ZLW series in conjunction with the drylin W pillow block WJ200UMA fulfil all customer requirements. Unlike conventional rolling bearings, which have to be lubricated, igus bearing technology does not require lubrication or maintenance. The sliding element of the pillow block is made of robust iglidur J200 material, which offers very good coefficients of friction even at low loads. In the event of wear, the bearing can be replaced directly on the rail without disassembly.

With the linear unit, Hoffmann + Krippner has found a solution that is easy to install and is also standardised. The clearance height of the drylin ZLW-1040 is just 45 millimetres, the stroke length is freely selectable and the matching carriages are supplied in three different sizes. Initial tests were carried out on a toothed belt axis with a stroke length of 150 millimetres, and the company later also installed a unit with a longer stroke. A drylin D1 motor control system for stepper, DC and EC/BLDC motors is also used here. The customer is pleased that the control system is absolutely identical and completely independent of the length of the unit.

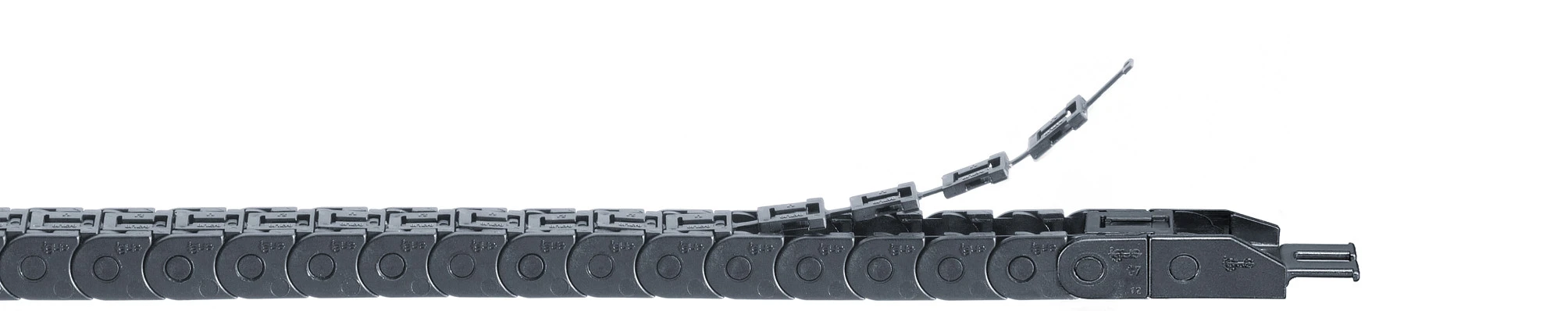

And finally, another igus product helps to ensure that the two test lines can run smoothly: The moving cables on the robot are safely guided by a zipper e-chain, which is easy to install and can be opened and filled quickly if required.
