chainflex® control cable CF6

  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Overall shield
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • CFRIP®
  • chainflex® class: 5.5.2.1

Nu sunte?i siguri unde se potrive?te?

Calculate service life
Download EPLAN files
Free sample request
CFRIP®

CFRIP®

50% reducerea timpului la dezizolare.
Cumpărați cablu cu conector?

Cumpărați cablu cu conector?

Căutați un cablu echipat? Dacă da, vizitați magazinul nostru readycable®.
chainflex® sample box

chainflex® sample box

Order free of charge
Product description
chainflex® control cable CF6

Typical application areas
  • For heavy duty applications
  • Minor oil influence
  • More suitable for indoor applications, but also for outdoor use at temperatures > 5 °C
  • Unsupported travel distances and up to 100 m for gliding applications
  • Storage and retrieval equipment, machining units/packaging machines, quick handling, indoor cranes
Guaranteed service life for this series according to the guarantee conditions
More information: chainflex® Guarantee
Double strokes*   5 millions   7,5 millions   10 millions
Temperature,  < 10 m  ≥ 10 m  < 10 m  ≥ 10 m  < 10 m  ≥ 10 m
from/to [°C]  R min. [factor x d]  R min. [factor x d]  R min. [factor x d]
+5 / +15  7,5 10  8,5 11 9,5 12
+15 / +60  6,8 7,5  7,8 8,5 8,8 9,5
+60 / +70  7,5 10  8,5 11 9,5 12

* Higher number of double strokes possible - use the service life calculation function on this page.

Certificate si standarde
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 2, material/cable tested by IPA according to ISO standard 14644-1.
Date tehnice
Descarcari

Alte solutii

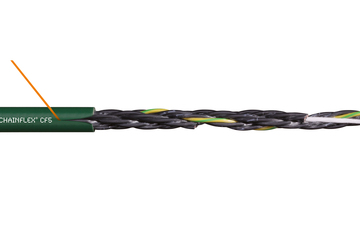

chainflex® control cable CF5
chainflex® control cable CF5

For heavy duty, PVC outer jacket, oil-resistant, flame-retardant

Începând cu 1,39 EUR/m
chainflex® control cable CF140.UL
chainflex® control cable CF140.UL

For medium duty applications, PVC exterior jacket, shielded, flame-retardant

Începând cu 2,51 EUR/m
chainflex® control cable CF78.UL
chainflex® control cable CF78.UL

For heavy duty, PUR outer jacket, shielded, resistant to oil and coolant, flame-retardant, notch-resistant, free of PVC and halogen, resistant to hydrolysis and microbes

Începând cu 5,11 EUR/m
