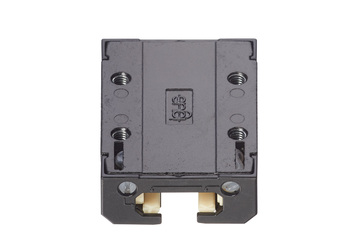

drylin® N guide carriage installation size 80 iglidur® J sliding element

Consistent movement with preload function
Suitable rails in silver and black available

Material sliding element: iglidur® J
Mounting type: Threaded, no bosses
Installation size: 80
Load capacity, stat.: 1000 N

Nu sunte?i siguri unde se potrive?te?

Download CAD files

Free sample request

drylin® N low-profile guide system core box

Contact to the linear technology Support

Contact to the linear technology Support

Your expert for linear technology

Product description

Two integrated elastomer elements reduce noise and rattling as well as bearing clearance to a minimum.

Tech up

Consistent movement with preload function Lower bearing clearance
High quality adjustment feel
Low-profile, 12mm system height
Integrated thread inserts within the carriage body

Cost dowm:

Ready-to-install, pre-assembled linear carriages
Suitable for low-profile rails NS-01-80 in silver and NS-01-80-AR in black
Fail-safe integrated preload
Individual preload possible
Dimensionally identical to carriages with fixed and floating bearings

Proof:

Tested: linear application, horizontal mounting position, two NS-01-80 rails, spacing 400mm, with two NW-02-80 carriages each, spacing 200mm, acceleration 1.25m/s², 50N centric load, expected service life: 30,000km
Tested: linear up to 4x quieter than metal bearings
Tested: corrosion resistance of linear rails, salt-spray tested (NSS) according to DIN EN 9227/ASTM B-117

Sustainability:

100% lubrication-free operation
Sliding elements individually renewable
Reusable carriage body
Low emission levels in the interior due to very quiet operation
Maintenance-free due to self-lubricating high-performance polymers from igus®
