drylin® E stepper motor with connector, NEMA 17

  • Installation size: NEMA17/flange dimension 42mm
  • Protection class: Motor housing IP65 (shaft seal IP52)
  • Holding torque: 0.50Nm
  • Rated current: 1.80A
  • Motor connection: Metric M12 connector

Nu sunte?i siguri unde se potrive?te?

Download CAD files
Configur. pentru tehnologie de acționare cu motor

Configur. pentru tehnologie de acționare cu motor

Aici puteți asambla cu câteva clicuri o axă liniară completă inclusiv motor, cabluri de conexiune și atașamente.
Product description
NEMA17: Small, but lots of power

This little motor has impressive torque and high RPMs. Reliable operation with quick movements of low loads.

Stepper motors from igus® are a good supplement to drylin® linear axes. They are characterised by their cost-effectiveness, their precision and easy control. They work reliably under the most varied environmental conditions (depending on the selected class of protection IP). The igus® stepper motors can be connected to the most common motor controls using standardised electrical connection.

The connector interface provides a high IP65 protection level (IP: International Protection). The higher the IP rating, the better the motor is protected from the ingress of dirt and water.


Date tehnice
Accesorii
Descarcari

Alte solutii

Jaw coupling with square axis clamp
Jaw coupling with square axis clamp

Vibration dampening and easy fitting

Începând cu 53,77 EUR/Pc.
Jaw coupling with round axis clamp
Jaw coupling with round axis clamp

Vibration dampening and easy fitting

Începând cu 44,53 EUR/Pc.
Motor flange for stepper and DC motors (motor bell)
Motor flange for stepper and DC motors (motor bell)

Matches the drylin® E coupling

Începând cu 42,59 EUR/Pc.
chainflex® Connection cable straight M12 x 1, CF.INI CF9
chainflex® Connection cable straight M12 x 1, CF.INI CF9

Socket at the cable front, cable ends cut

Începând cu 17,64 EUR/Pc.
chainflex® Connection cable angled M12 x 1, CF.INI CF9
chainflex® Connection cable angled M12 x 1, CF.INI CF9

Socket at the cable front, cable ends cut

Începând cu 17,74 EUR/Pc.
drylin® D1 motor control system for stepper, DC and EC/BLDC motors
drylin® D1 motor control system for stepper, DC and EC/BLDC motors

Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V

Începând cu 646,62 EUR/Pc.
chainflex® CF240 data cable
chainflex® CF240 data cable

For medium duty applications, PVC outer jacket, shielded, oil-resistant and flame-retardant

Începând cu 2,33 EUR/m

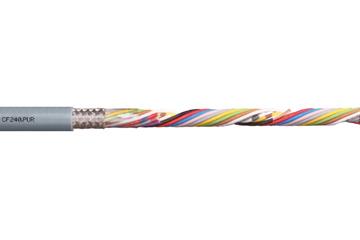

chainflex® CF240.PUR data cable
chainflex® CF240.PUR data cable

For medium duty use, PUR outer jacket, shielded, resistant to oils / coolants, notch-resistant, free of PVC and halogen, flame-retardant, resistant to hydrolysis and microbes

Începând cu 2,96 EUR/m
External braking resistors (power class 50/75/100 W) for EC/BLDC motors
External braking resistors (power class 50/75/100 W) for EC/BLDC motors

NEMA17-34

Începând cu 6,25 EUR/Pc.
