Electric motors

The portfolio of igus® includes stepper motors in several sizes, extendable with encoders and brakes, cost-effective and quiet DC motors, which can also be operated via battery without complex external power electronics, and EC motors for fast, powerful movements. Gearboxes that reduce the output speed and thus increase the available drive torque.
The motors are used, among other things, in packaging and inspection technology, for example in sensor and camera travel - also in the food sector, outdoors and areas exposed to splashes and water spray.


Expert system motor

Expert system motor

The right drylin E motor in just a few clicks. Simply enter your requirements and receive suitable suggestions.
FAQs

FAQs

Frequently asked questions about igus® dryves
List
Tile

Numar de produse: 87

Nou

drylin® E stepper motor, stranded wires with JST connector and encoder, NEMA 23
drylin® E stepper motor, stranded wires with JST connector and encoder, NEMA 23
  • Installation size: NEMA 17 / flange dimension 42 mm
  • Protection class: IP40
  • Holding torque: 2.00 Nm
  • Nominal current: 4.20 A
  • Motor connections: stranded wires with JST connector, encoder with JST connector
La cerere
1 articole, acestea fiind gata de expediere din Germania:
1 Gata de expediere în 24 - 48 ore din Germania
La pagina produsului
CE EMV guideline
Nou

drylin® E EC/BLDC motor with stranded wires, Hall, encoder and brake, NEMA 34
drylin® E EC/BLDC motor with stranded wires, Hall, encoder and brake, NEMA 34
  • Installation size: NEMA 34 / flange dimension 86 mm
  • Protection class: IP40
  • Rated torque: 1.00 Nm
  • Rated voltage: 48 VDC
  • Motor connections: stranded wire, encoder with stranded wire, brake with stranded wire
  • brake voltage: 24V
  • integrated brake for vertical loads
La cerere
1 articole, acestea fiind gata de expediere din Germania:
1 Gata de expediere în 24 - 48 ore din Germania
La pagina produsului
CE EMV guideline
Nou

drylin® E stepper motor, stranded wires with Molex connector and encoder, NEMA 34
drylin® E stepper motor, stranded wires with Molex connector and encoder, NEMA 34
  • Installation size: NEMA 34 / flange dimension 86 mm
  • Protection class: IP40
  • Holding torque: 5.90 Nm
  • Nominal current: 6.40 A
  • Motor connections: stranded wires with Molex connector, encoder with JST connector
La cerere
1 articole, acestea fiind gata de expediere din Germania:
1 Gata de expediere în 24 - 48 ore din Germania
La pagina produsului
CE EMV guideline
Nou

drylin® E EC/BLDC motor with stranded wires, Hall, encoder and brake, NEMA 23
drylin® E EC/BLDC motor with stranded wires, Hall, encoder and brake, NEMA 23
  • Installation size: NEMA 23 / flange dimension 56 mm
  • Protection class: IP40
  • Rated torque: 0.60 Nm
  • Rated voltage: 48 VDC
  • Motor connections: stranded wire, encoder with stranded wire, brake with stranded wire
  • brake voltage: 24V
  • integrated brake for vertical loads
La cerere
1 articole, acestea fiind gata de expediere din Germania:
1 Gata de expediere în 24 - 48 ore din Germania
La pagina produsului
CE EMV guideline
Nou

drylin® E stepper motor, stranded wires with JST connector and encoder, NEMA 17
drylin® E stepper motor, stranded wires with JST connector and encoder, NEMA 17
  • Installation Size: NEMA 17 / flange dimension 42 mm
  • Protection class: IP40
  • Holding torque: 0.50 Nm
  • Nominal current: 1.80 A
  • Motor connections: stranded wires with JST connector, encoder with JST connector
La cerere
1 articole, acestea fiind gata de expediere din Germania:
1 Gata de expediere în 24 - 48 ore din Germania
La pagina produsului
CE EMV guideline
Nou

drylin® E Stepper motor, stranded wires with JST connector and encoder, NEMA 24
drylin® E Stepper motor, stranded wires with JST connector and encoder, NEMA 24
  • Installation size: NEMA 24 / flange dimension 60 mm
  • Protection class: IP40
  • Holding torque: 3.50 Nm
  • Nominal current: 4.20 A
  • Motor connections: stranded wires with JST connector, encoder with JST connector
La cerere
1 articole, acestea fiind gata de expediere din Germania:
1 Gata de expediere în 24 - 48 ore din Germania
La pagina produsului
CE EMV guideline
Nou

drylin® E EC/BLDC motor brushless with hall/encoder and brake, flange size 60mm
drylin® E EC/BLDC motor brushless with hall/encoder and brake, flange size 60mm
  • Flange dimension 60 mm/NEMA24
  • Protection class motor housing: IP40
  • Nominal voltage: 48V DC
La cerere
1 articole, acestea fiind gata de expediere din Germania:
1 Gata de expediere în 24 - 48 ore din Germania
La pagina produsului
CE EMV guideline
Nou

drylin® D7 stepper motor output stage (NEMA11/17) with cycle/direction
drylin® D7 stepper motor output stage (NEMA11/17) with cycle/direction
  • Can control stepper motors with up to 2.7A continuous current at supply voltage of up to 48V
  • Ready to use immediately
  • Easy control
  • Exact positioning
La cerere
1 articole, acestea fiind gata de expediere din Germania:
1 Gata de expediere în 24 - 48 ore din Germania
La pagina produsului
CE EMV guideline
Nou

drylin® E EC/BLDC motor with stranded wires, Hall, encoder and brake, NEMA 17
drylin® E EC/BLDC motor with stranded wires, Hall, encoder and brake, NEMA 17
  • Installation size: NEMA 17 / flange dimension 42 mm
  • Protection class: IP40
  • Rated torque: 0.30 Nm
  • Rated voltage: 48 VDC
  • Motor connections: stranded wire, encoder with stranded wire, brake with stranded wire
  • brake voltage: 24V
  • integrated brake for vertical loads
La cerere
1 articole, acestea fiind gata de expediere din Germania:
1 Gata de expediere în 24 - 48 ore din Germania
La pagina produsului
CE EMV guideline
Nou

drylin® D8 stepper motor output stage (NEMA23/24) with cycle/direction
drylin® D8 stepper motor output stage (NEMA23/24) with cycle/direction
  • Can control stepper motors with up to 4 A continuous current at supply voltage of up to 48V
  • Ready to use immediately
  • Easy control
  • Exact positioning
La cerere
1 articole, acestea fiind gata de expediere din Germania:
1 Gata de expediere în 24 - 48 ore din Germania
La pagina produsului
CE EMV guideline
Nou

drylin® D9 stepper motor output stage (NEMA34) with cycle/direction
drylin® D9 stepper motor output stage (NEMA34) with cycle/direction
  • Can control stepper motors with up to 7A continuous current at supply voltage of up to 48V
  • Ready to use immediately
  • Easy control
  • Exact positioning
La cerere
1 articole, acestea fiind gata de expediere din Germania:
1 Gata de expediere în 24 - 48 ore din Germania
La pagina produsului
CE EMV guideline

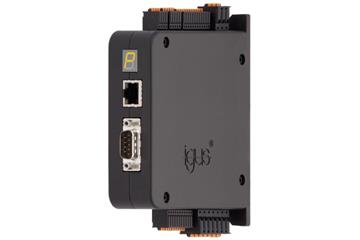

drylin® D1 motor control system for stepper, DC and EC/BLDC motors
drylin® D1 motor control system for stepper, DC and EC/BLDC motors
  • A wide range of automation tasks by simple parameterisation, no programming necessary
  • For single axes, line, flat, linear and room linear robots and delta robots
  • No software installation or app required
  • Use with PC, tablet or smart phone
  • Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V
  • Digital inputs/outputs, analogue inputs, CANopen, ModbusTCP (CANopen Gateway) for connection to master control systems such as Siemens or Beckhoff

    You can find all relevant documents in the downloads below.


    TEST BEFORE INVEST - Try out the motor control system here with the online simulation before you buy it
Începând cu 486,00 USD/Pc.
1 articole, acestea fiind gata de expediere din Germania:
1 Gata de expediere în 24 - 48 ore din Germania
La pagina produsului
CE EMV guideline
Nou

drylin® D2 motor control system for stepper, DC and EC/BLDC motors
drylin® D2 motor control system for stepper, DC and EC/BLDC motors
  • A wide range of automation tasks by simple parameterisation, no programming necessary
  • For single axes, line, flat, linear and room linear robots and delta robots
  • No software installation or app required
  • Use with PC, tablet or smart phone
  • Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V
  • Digital inputs/outputs, analogue inputs, CANopen, ModbusTCP (CANopen Gateway) for connection to master control systems such as Siemens or Beckhoff

    You can find all relevant documents in the downloads below.


    Further information on dryve D1 info page
La cerere
1 articole, acestea fiind gata de expediere din Germania:
1 Gata de expediere în 24 - 48 ore din Germania
La pagina produsului
CE EMV guideline

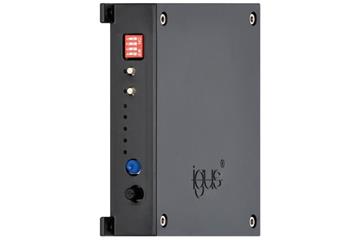

drylin® D3 for direct current motors
drylin® D3 for direct current motors
  • Simple automation directly using the control system without software and/or PC
  • Operation with limit switch or via power consumption
  • Left/right operation and speed control directly on the housing
  • Option for external switches/joysticks
  • Various modes of operation, such as tip operation and start to finish (semi-automatic)
  • Various adjustable acceleration ramps
  • Power supply via 24V/2.5A

    All relevant documents for dryve D3 can be found in the downloads.
Începând cu 170,64 USD/Pc.
1 articole, acestea fiind gata de expediere din Germania:
1 Gata de expediere în 24 - 48 ore din Germania
La pagina produsului
CE EMV guideline

drylin® D3-LM motor control system for DC motors with loop mode
drylin® D3-LM motor control system for DC motors with loop mode
  • Same dimensions as the standard D3
  • Extended functions for "Micro Automation"
  • Individually pre-programmed pendulum movements
  • Individually pre-programmed pause times between movements

    All relevant documents for D3 dryve:
    Go to download portal
La cerere
La pagina produsului
CE Following 2014/35/EU
